Fiber Splicing

Splice loss increase: Reason and solution

April 6, 2015April 6, 2015FOWIKI.comComments Off on Splice loss increase: Reason and solution
Share

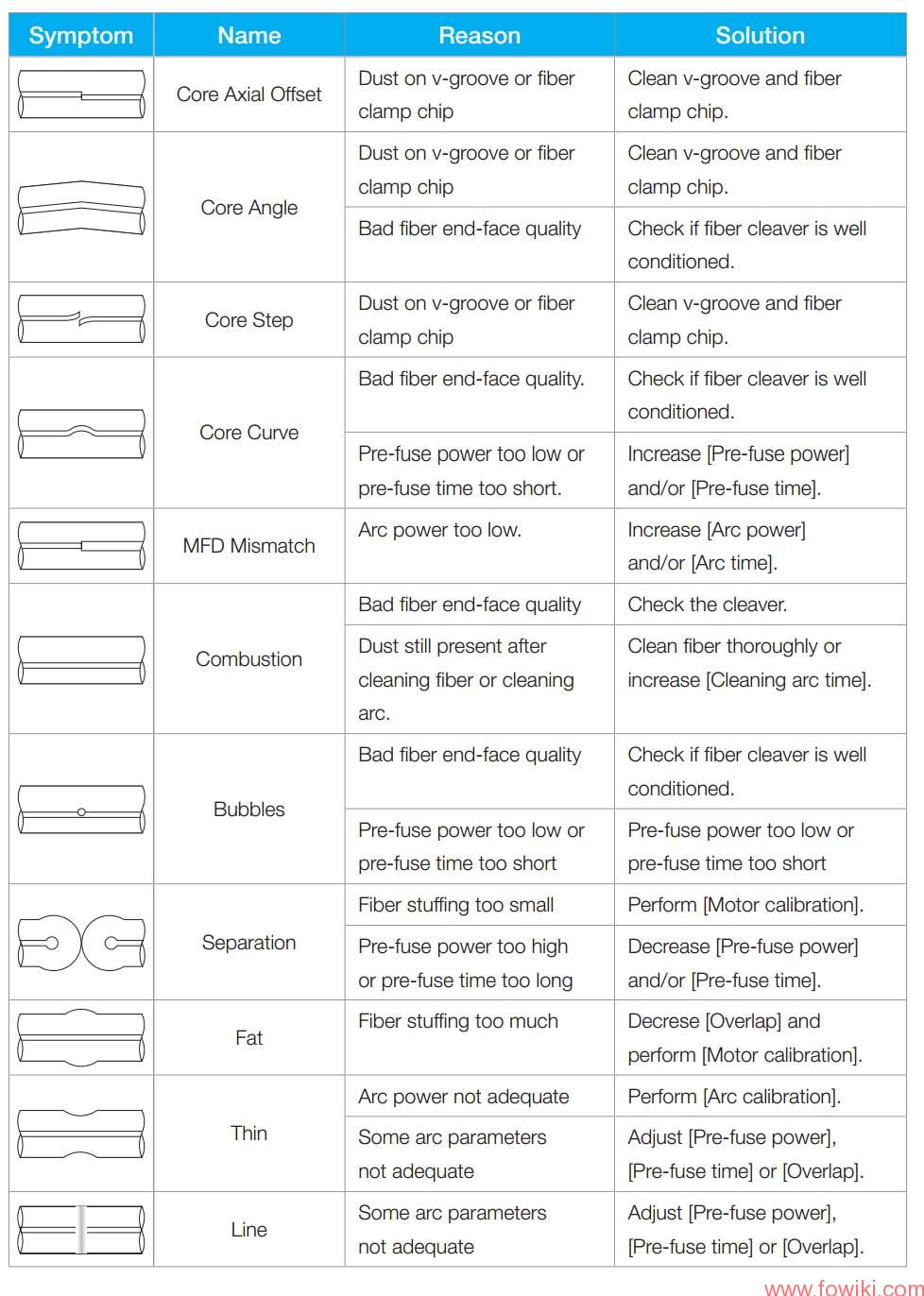

Splice-Loss-and-Solutions
Splice-Loss-and-Solutions

Note: A vertical line sometimes appears at the splice point when MM fibers, or dissimilar fibers (different diameters) are spliced. This does not affect splice quality, such as splice loss or tensile strength.

Tagged Fusion Splicer, splice loss, Welding Machine
