Power Meter Calibration Introduction

When it comes to calibration, it is not enough to state that an instrument complies with published specifications; it is necessary to be ready to prove it and to have a state-of-the-art system in place to monitor and preserve the quality of all calibrations.

In 1998, EXFO decided to adopt the necessary measures to base in-house power meter calibration on the latest applicable international standards, including those established by the International Organization for Standardization(ISO) and the International Electrotechnical Commission(IEC). In order to achieve this goal, a dedicated team, consisting of both metrology and software development specialists, was created. The team’s mandate was to satisfy the following objectives:
1. Improve performance

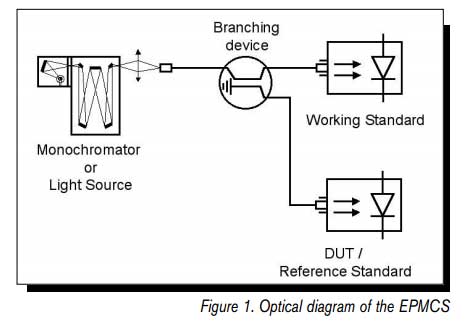

power-meter-calibration-connection-diagram
power-meter-calibration-connection-diagram

2. Ensure compliance with IEC 61315
3. Produce calibration certificates that comply with ISO/IEC 17025
4. Make a complete uncertainty evaluation based on international standards
5. Build a dedicated software and database architecture
The new system was successfully implemented and, immediately, positive results were seen: all of the objectives had been met.

Improved Performance
In addition to being fully qualified and automated, EXFO’s in-house power meter calibration system (EPMCS) offers the following

advantages:
• Quicker calibration time
• Minimization of uncertainties: system components were chosen and qualified before final selection
• Increased reliability: thanks to the tested ruggedness of all components and to the performance of the control software

Complete Uncertainty Evaluation
The latest international standards require that calibration uncertainties be evaluated and taken into account when a declaration of conformity is given for a specification. Our uncertainties evaluations are carried out in accordance with the guidelines stated in the Guide to the Expression of Uncertainty in Measurementby ISO, IEC, BIPM (Bureau International des Poids et Mesures) and other international organizations.

In order to ensure coherence, EXFO makes every effort to establish correspondence between calibration uncertainties, guaranteed specifications, allowed deviation between the unit and the standard, as well as the conformance assessment of the power meter’sstatus upon reception of the unit:
a. Calibration uncertainties are expressed in the certificate. It states the combined uncertainties of the following factors:
i. Reference standard calibration uncertainty
ii. Dependence of the reference standard on measurement conditions
iii. Dependence of the tested meter on measurement conditions
iv. Other uncertainties due to the setup and measurement method

In order to determine the contribution of these parameters, the dependence of the detector’s response at each point is evaluated for the source’s wavelength uncertainty, light output stability, light output bandwidth, temperature uncertainty, connector-adapter combination, fiber type, repeatability of the measurement, power meter linearity and other factors.

b. Guaranteed specifications are EXFO’s published specifications for the unit (may vary depending on wavelength). Every unit that is calibrated at EXFO and returned to the customer is guaranteed to comply with published specificationsfor all parameters that are verified in the calibration process. In fact, the calibration process itself foresees the possibility of making all the necessary adjustments to ensure compliance, and written proof is given in the “As left” section of the calibration certificate when the Within specifications box is checked.

c. The allowed deviation is the difference between the measurement of the power meter under test and the reference standard; this is a key factor in the determination of whether or not a unit conforms to its specifications.

d. The conformance assessment of the power meter’s status upon reception of the unit requires a judgement on the compliance or non compliance with specifications. The result of this judgement depends on the allowed deviation and on the gray zone introduced by calibration uncertainties. As a consequence of this gray zone, it is not always possible to draw a firm conclusion regarding the status of the unit when it is received from the customer.

Aware of the importance of this step, and following the indications given by ISO/IEC 17025, EXFO introduced, in the “As found” section of the certificates, four possible conclusions depending on deviation, guaranteed specifications (Spec) and calibration uncertainty (Ucal):

i. Within specifications
When measured deviation is within the following limits, the unit is said to be within specifications with a level of confidenceof 95 %:

|deviation| ≤Spec — Ucal

ii. Within specifications*
This is stated when all measured results are within specification limits. In conformance with ISO/IEC 17025, full compliance cannot be stated because of measurement uncertainties. Nevertheless, results indicate that the instrument is likely to perform according to specifications.
This zone is bound by the following limits:

Spec — Ucal <|deviation| ≤Spec

iii. Outside specifications*
This is the case when some measured results are outside specification limits. Nevertheless, non compliance cannot be stated because of measurement uncertainties.
Limits are given by:

Spec <|deviation| ≤Spec + Ucal

In cases where conclusion ii or iii applies to the instrument, it is up to the user to determine if measurements taken prior tothe sending of the unit for verification are considered to be valid or not. This depends on the following factors:
• Whether a deviation larger than published specifications can be tolerated for these measurements
• The closeness of the measurements that were taken with the unit to the maximum allowed deviation

iv. Outside specifications
In this case, the unit is definitely not within specifications, as deviation is higher than the sum of the specification and the calibration uncertainty.

|deviation| >Spec + Ucal

For example, for power meter models whose specification and calibration uncertainties are respectively 5% 1 and 4 % (at 1550 nm), the deviation will allow us to conclude the following:
i. Within specifications: |deviation| ≤1 %
ii. Within specifications*: 1 % < |deviation| ≤5 %
iii. Outside specifications*: 5 % < |deviation| ≤9 % iv. Outside specifications: |deviation| > 9 %
1 Note that when converting a linear ratio of error (W/W) to logarithmic scale (dB), the following formula shall be followed: UdB=10 log10(1 +Ulin). The result in logarithmic scale depends on which limit is taken on the linear scale, e.g.: for +5 %, the equivalent is 0.21 dB; whereas for –5 %, the equivalent is –0.22 dB.

This approach reflects recommendations given by some European standards, which state that once the result of a calibration is found to be in the gray zone, statistically, it is still possible that the unit is within specifications. Probabilities increase or decrease depending on the measured deviation compared to calibration uncertainties and specifications.
For further information, refer to AFNOR NF X 07-010 (Association Française de Normalisation): The Metrology Function within the Firmand to ILACG8:1996 (International Laboratory Accreditation Cooperation): Guidelines on Assessment and Reporting of Compliance with Specifications.

Dedicated Software and Database Architecture

A considerable amount of effort was deployed by a dedicated team of software specialists to design and develop fully integratedand automated calibration software. This software controls all components of EXFO’s in-house system, statistically processing all measurements and ensuring a high level of confidence for every result.
One of the main advantages of this system is the implementation of a database that enables EXFO to keep track of all calibrations and verification, thus providing two key benefits. First, to relate any calibration to the working and reference standards used. Second, to keep a statistical record of power and wavelength calibrations of working standards. This rigorous process ensures the highest quality for all calibrations performed at each station.

Acknowledgements
I would especially like to thank my colleagues Marc Breton and Francis Regamey for their precious collaboration. Their advice and direction were particularly valuable during the metrological research and required tests. It is also important to mention the great effort put forth by the entire software team in the design and development of this system
